Name:Double Drum Lightweight Pulling Fishing Boat Slipway Electric Winch on Dock
Product feature:
- This series of electric winch is mainly used to lift material, drag heavy object in building construction
- It can be also used as lifting unit of crane
- Special purpose winch for derrick, portal frame and lifting trolley
- Suitable in civil construction projects in building, mining area, factories and installation of small equipment
Type: Double drum wire rope electric winch.
Product name:electric winch /double drum winch
Application: Cranes,lifting, pulling, hoisting...
Motor Power: 3~160KW
Rated speed: 0~46m/min
Maximum Lifting weight: 50t
Maxumum lifitng height: 18m
Drum type :LBS groove drum
LBS grooved winch drum advantage:
- Each one circle layer of the grooved drum has two parallel groove and two groove section
- Make the cable even smooth ;load even distribution
- Prevent cross &mess in cable rolling working happening
- Lower the cable damage, extend the cable life
Parameter: can be design as the lift height or use function
| Model | Frirst layer Pull force(T) | Drum bottom diameter | Layer | Rope capaticty(mm) | Diameter of steel cable(mm) | Model of power |
| LBSOF3-10 | 1 | 7-12 | 305 | 4 | 170 | 15 | XH2-420 D51 |
| LBSOF3-20 | 2 | 7-28 | 380 | 4 | 180 | 20 | XH3-900 D240 101 |
| LBSOF3-30 | 3 | 6-25 | 470 | 4 | 240 | 24 | XH5-1800 D240101 |
| LBSOF3-40 | 4 | 10-23 | 470 | 4 | 270 | 28 | XH6-2000 D240 101 |
| LBS0F3-50 | 5 | 10-25 | 600 | 4 | 300 | 30 | XH6-3000 D240101 |
| LBSOF3-10 | 10 | 15-30 | 640 | 8 | 500 | 38 | XH7-4300 D240101 |
Main types of the electric winch
(1) Slow speed wire rope electric winch.
(2) High speed wire rope electric winch.
(3) Hand controlled wire rope electric winch.
(4) Double drum wire rope electric winch.
Working principle
electric winch for widely use transforms electric energy into mechanical energy through the motor, winch is rotor of the motor moves, outputs. Through the brake and the reducer, it reduces speed to rotate the reel. The reel winds the wire rope and passes through pulley block to make the hook lift the load, and transforms mechanical energy into mechanical work finishing transportation, load and unload of heavy weights.
Specific details
1. Loading capacity:0.5~200 ton or customized design
2. Wire rope capacity:20~3600m or customzied design
3. Working speed:5~20 m/min or customized design
4. Power supply:220~690V,50/60HZ,three phase or customized design.
Remark:Above parameter just for your reference,
this winch can be customized according to your demands
Why you shoud choose us:
1)10 years LBS design and produce experience
2)LBS patent award by government
3)The specilized in design and drawing for one of the customer according the different usage
4)The successful case with China big government project
5) Top quality with competitive price.
Product Tags:
|
|

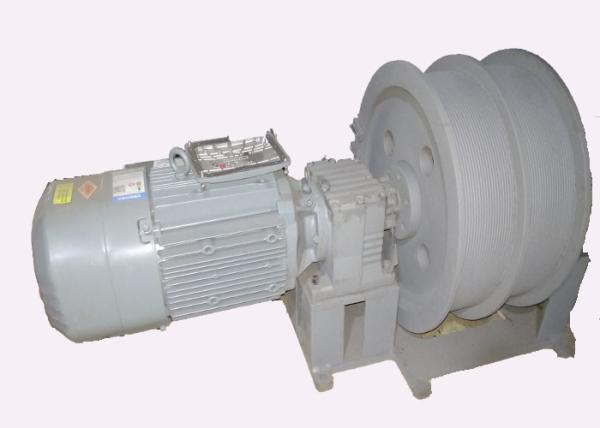

Double Drum Lightweight Electric Lifting Winch Power Winch Images
|
