Design speical feather:
The LBS system keeps the spooled rope in a uniformed pattern,distribute the load of each rope and layer. This prevents lower layers being crushed or pinched by upper layers. It is obvious advantage in heavey duty and multi-layer up to 100 layers
technical parameter:customer based
| Model | LBS3/110 | LBS5/100 | LBS16/60 | LBS16/100 |
| Flow Rating | L/min | 120 | 120 | 120 | 120 |
| gpm | 31.7 | 31.7 | 31.7 | 31.7 |
| Pressure Rating | MPa | 16.6 | 16.6 | 16.6 | 16.6 |
| psi | 2400 | 2400 | 2400 | 2400 |
| Max.Pull | kN | 30 | 50 | 160 | 160 |
| US ton | 3.3 | 5.5 | 17.6 | 17.6 |
| Max.Line Speed | m/min | 23 | 11 | 5.8 | 5.8 |
| ft/min | 73 | 36 | 19 | 19 |
| Wire Rope Diameter | mm | 12.7 | 20.5 | 28 | 28 |
| in | | | 13/32 | 13/32 |
| Rope storage | m | 110 | 100 | 60 | 100 |
| ft | 360 | 328 | 197 | 328 |
| Size | mm | 810×490×500 | 880×520×710 | 1340×930×900 | 1520×930×900 |
| in | 32×19×20 | 35×21×28 | 52.8×36.6×35.4 | 59.5×36.6×35.4 |
| Weight | kg | 490 | 490 | 1150 | 1250 |
| lb | 1080 | 1080 | 2530 | 275 |
Technical parameters
The oil pumping unit is composed of vehicles, power transmission mechanism, hydraulic system, derrick, drum winch, operating room and well-head device. drum winch is one of the most important parts of trailer mounted pumping units.all winch drum adopts LBS groove structure.
Ours services
1. After-sales Service Provided: Engineers available to service machinery overseas
2. The warranty is one year
3. Top quality with competitive price
4. The engineer can provide overseas service
5. Quick and responsible after-sales service
Company profile
Our factory mainly in the service of hoisting machinery, Marine machinery, petroleum machinery, hydraulic machinery, engineering machinery and other industries, the main products are oil drilling rig, workover rig, drifting machine, trailermounted pumping unit winch (The main drum is used LBS grooved drum) and oil equipment accessories
Product Tags:
|
|

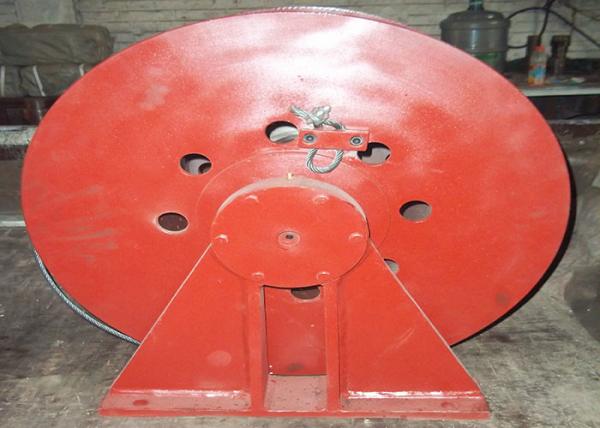

Oil Winch Marine Winch Trailer Mounted Pumping Unit Winch Drum Images
|
